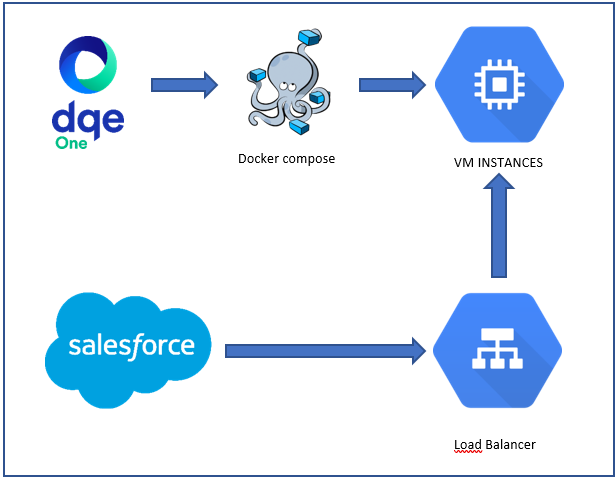

1. Architecture

When your dedicated instance of the DQE One server is up and running, it is then possible to launch the configuration step from your Salesforce application. The app must have the appExchange DQE One package installed beforehand.

This document describes an example of the possible configuration to set up the server instance. We do not provide documentation regarding the instance security layer on your environments.


Flow Diagram

Here is the diagram describing all the inbound/outbound flows as well as the IPs and Ports requested by the application.


Security Measures

We cannot provide an example of how to implement the security layer that would fit perfectly into your architecture. However, we can provide some recommendations that are relevant to the use of the app itself.

  • Protocols and Ports : All outgoing/incoming flows from the application go through the HTTPS protocol (port 443). There is no need to open another port on your VM. The DQE IPs that must be accessible are described in the preceding diagram.
  • IP Filtering: The application server itself only needs to be accessible from Salesforce's servers. It is therefore recommended to set up a filtering of incoming IPs.

There is an exception to this, however, being the CustomUI web server included in the docker-compose. It must be accessible by a web browser. One solution could therefore be to allow a specific VPN to access the server. See here the list of IPs published by Salesforce. (Don't forget the Hyperforce IPs)

  • Authentication protocol : Salesforce natively offers several protocols to secure requests between its servers and the DQE One server. When configuring the "DQE One Customer" Connected App in your organization, you will be able to select the "Basic Auth" authentication method and configure your application firewall accordingly.

Recommendation

In this section, we describe the list of components required to install the One Server DQE instance on a VM.

Note: Estimation are made for a base of 1 million records. Depending on the volume of the databases processed, it may be necessary to increase the memory capacity of container instances to optimize processing times.

Deployment with VM INSTANCES

  • Server Configuration:
    • Type: Unix, e.g. Ubuntu.
    • RAM memory: 3 to 5GB
    • Disk memory: 10GB
    • CPU: 1vCPU
  • Load Balancer: Not essential but can be used if already existing.

Composition and services

The docker image is a web application that exposes the services and APIs that are requested from Salesforce through the Lightning DQE Unify UI app.

For each service, we outline the attributes and their functions below.

WEB APPLICATION

A backend container that contains a microservices application. This application exposes all the APIs called to launch processes, manage processing queues, instantiate processing workers. It is dependent on the following services to function properly. This worker must be exposed on the web as described in the nginx configuration presented later in this document.

Docker Compose settings

  • image: The name of the image used by the web application. It is necessary to rename the image according to the names of the registries used. For images hosted in an Azure container registry, the name is constructed as follows:
    <Name of the registry container>.azurecr.io/<name of the image>
  • container_name: Container Name
  • depends_on: Name of the services that precede this service
  • domainname: The name of the domain for the FQDN. Azure Rated Result:
    <domain name>
  • environment: Service environment variables
  • command: Command executed when the container is launched

Worker

A backend container that contains a microservices application. This application exposes all the APIs called to launch processes, manage processing queues, instantiate processing workers. It is dependent on the following services to function properly. This worker must be exposed on the web as described in the nginx configuration presented later in this document.

Parameters to set in Docker Compose

  • image: The name of this image is the same as the web service
  • container_name: The name of the container that appears in Azure
  • depends_on: Name of the services that precede this service
  • environment: Service environment variables
  • command: Command executed when the container is launched

CustomUI

This service is a web application exposing a front used to configure deduplication rules. Like the first service, it must therefore also be exposed on the web. This service also consumes some APIs from the backend, for example to retrieve metadata from the CRM.

Registry Name: *

Image name: *

Available versions: *

Redis

This service is a key/value database used by the various departments to store internal operating keys such as Salesforce org configurations, sessions, etc.

It is possible to use official images published by Redis such as "redis:alpine", but as a security measure some cloud providers block the retrieval of public images and only allow images from private registries. To overcome this restriction, we also publish on the private registry "dqeone" a version of redis that is perfectly compatible with our applications.

Parameters

  • image: Official image of redis => redis:alpine
  • container_name: The name of the container that appears in Azure
  • volumes: The path of the volume to be used to back up Redis data
    <name of the volume defined in this docker compose>:/data

RabbitMQ

This service is a powerful queue manager allowing the reception and scheduling of processing requests. Until a process has been assigned to a worker and completed, it will be parked in a queue. This also allows for resiliency to failures, if the server were to be restarted, it would resume the last processing in the queue where it left off.

As with the Redis service image, you have the option to use a public version (rabbitmq:3-management-alpine) or the one in the private dqeone registry.

Parameters

  • image : Official image of rabbitmq => rabbitmq:3-management-alpine
  • container_name : Name of the container that appears in aws

2. Installation

2.1. Prequisites

NGINX installation

$ sudo apt update
$ sudo apt install nginx

Configuration example :

server {
listen 443 ssl;
server_name mysite.com;
ssl_certificate /etc/nginx/ssl/[MY_CERTIFICATE].pem;
ssl_certificate_key /etc/nginx/ssl/[ MY_PRIVATE_KEY].key;
ssl_protocols TLSv1.2 TLSv1.3;
#ssl_ciphers HIGH: !aNULL: ! MD5;

location / {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Host $host;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "Upgrade";
proxy_http_version 1.1;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header Cookie $http_cookie;
proxy_set_header Referer $http_referer;
proxy_pass http://127.0.0.1:8001/;
}


location /unify/ {
rewrite /unify/(.*) /$1 break;
proxy_set_header Host $host;
proxy_pass http://127.0.0.1:8000;
}

location /lookup {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $host;
proxy_pass http://127.0.0.1:8000;
}

location /static {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $host;
proxy_pass http://127.0.0.1:8000;
}

Location /API {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $host;
proxy_pass http://127.0.0.1:8000;
}

access_log /var/log/nginx/dqeone.log;
error_log /var/log/nginx/dqeone-error.log error;
}

Docker installation

  1. Update the existing package
    $ sudo apt-get update
  2. Installing prerequisites for using packages over HTTPS
    $ sudo apt install apt-transport-https ca-certificates curl software-properties-common
  3. Adding the GPG key from the official Docker repository
    $ curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
  4. Adding the Docker repository to APT sources
    $ sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu focal stable"
  5. Updating packages
    $ sudo apt-get update
  6. Verification installation from Docker repository
    $ apt-cache policy docker-ce
  7. Docker installation
    $ sudo apt install docker-ce

Docker-compose installation

  1. Download the desired version (Version number to change in the url)
    $ sudo curl -L "https://github.com/docker/compose/releases/download/<NUMEROS_DE_VERSION>/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
  2. Setting permissions
    $ sudo chmod +x /usr/local/bin/docker-compose

Azure-cli installation

$ sudo curl -sL https://aka.ms/InstallAzureCLIDeb | sudo bash

2.2. One Server

version: '3.8'
services:
rabbitmq:
image: rabbitmq:3-management-alpine
container_name: rabbitmq
hostname: rabbitmq
logging:
driver: none
depends_on:
- redis
environment:
RABBITMQ_DEFAULT_PASS: guest
RABBITMQ_DEFAULT_USER: guest
RABBITMQ_DEFAULT_VHOST: admin
volumes:
- rabbitmq_data:/var/lib/rabbitmq/
- rabbitmq_log:/var/log/rabbitmq/
ports:
- "15672:15672"

redis:
container_name: redis
image: "redis:alpine"
hostname: redis
logging:
driver: none
ports:
- "6379:6379"

unify:
container_name: one-server
image: <imageURL>
expose:
- "8000"
ports:
- "8000:8000"
depends_on:
- redis
- rabbitmq
environment:
- SFAPIVERSION=v57.0
- WAIT_HOSTS= redis:6379
- WAIT_HOSTS_TIMEOUT=300
- WAIT_SLEEP_INTERVAL=5
- WAIT_HOST_CONNECT_TIMEOUT=30
- REDIS_URL=redis://redis
- CLOUDAMQP_URL=amqp://guest:guest@rabbitmq/admin
command:
- "bash"
- "./entrypoint.sh"

custom:
container_name: custom
image: <imageURL>
command: npm start
environment:
- PORT=8001
expose:
- "8001"
ports:
- "8001:8001"

worker:
container_name: queue-worker
image: <imageURL>
restart: always
depends_on:
- unify
- redis
- rabbitmq
environment:
- SFAPIVERSION=v57.0
- WORKDIRPATH=/app/unify
- REDIS_URL=redis://redis
- CLOUDAMQP_URL=amqp://guest:guest@rabbitmq/admin
command: python -u ./unify/queue_worker.py

volumes:
rabbitmq_data:
rabbitmq_log:
redis_data:
nginx.conf:

3. Launcher

3.1. Connecting DQE One Image to Azure Hub

Connect the docker to the ONE Server DQE image on Azure:

$ sudo docker login **************
Username: <Login provided by DQE>
Password: <Pwd provided by DQE>

3.2. Launch of docker-compose.yml

Go to the folder containing the docker-compose.yml and launch the.

$ sudo docker-compose up
